CM3608

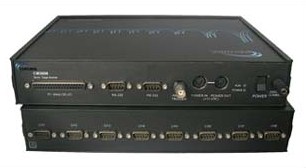

8-Channel Strain Gage Conditioning Module
| SPECIFICATIONS |  CM3608 PDF datasheet |
| Analog Input | 8 channels |
| Bridge Configuration | Quarter Bridge, Half Bridge, Full Bridge |
| Bridge Resistance | 120～1000 Ohms |
| Input Range (120 Ohms) | 0～±30000 με (1/4 Bridge) 0～±15000 με (Half Bridge) 0～± 7500 με (Full Bridge) |
| Linear Accuracy | ±0.1% of FSR max |
| Excitation Source | independent constant voltage source on per channel, software programmable: 1.25V, 2.5V, 5V, 10V; with self-restore input short circuit protection |
| Programmable Gain | 1, 2, 5, 10, 100, 200, 500, 1000, 2000, 5000, 10000 |
| Input Coupling | AC and DC software selectable |
| High-Pass Filter | 0.2Hz |
| Low-Pass Filter | 4-pole low-pass filter, programmable on per channel, 10Hz, 100Hz, 1kHz, Bypass |
| Simultaneous Sampling (SSH) | simultaneous sample and hold ( CM3608-SSH ) |
| Signal Connection | DB9 |
| Connectors | DB37 |
| Operating Temperature | 0 to 70 ℃ |
| Dimensions | 273mm x 276mm x 50mm |
| Weight | 2 kg |
| ORDER INFORMATION | |
| CM3608 | 8-Channel Strain Gage Conditioning Module, Programmable Filter, Gain and Bridge Excitation Source |
| CM3608-SSH | 8-Channel Strain Gage Conditioning Module, Programmable Filter, Gain and Bridge Excitation Source, with simultaneous sample and hold |
