CM3616

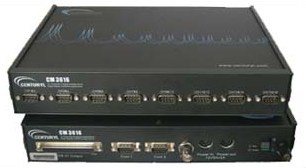

16-Channel Strain Gage Conditioning Module
| SPECIFICATIONS |  CM3616 PDF datashee |
| Analog Input | 16 Channels |
| Bridge Configuration | Quarter Bridge, Half Bridge, Full Bridge |
| Bridge Resistance | 150～1000 Ohms |
| Input Range (120 Ohms) | 0～±32000με (1/4 Bridge); 0～±16000με (Half Bridge) 0～±8000με (Full Bridge) |
| Auto-Balance | ±16000με (1/4 Bridge, 1.25V); ±8000με (1/2 Bridge, 1.25V); ±4000 με (Full Bridge) |
| Linear Accuracy | ±0.004% of FSR max, gain ≤1000 |
| Excitation Source | independent constant voltage source on per channel, software programmable: 1.25V, 2.5V, 5V, 10V; 0.1% |
| Programmable Gain | 500, 1000, 2000, 5000 |
| Input Coupling | AC and DC software selectable |
| Low-Pass Filter | 10Hz, 100Hz, 1kHz, 10kHz (jumper selectable) |
| CMMR@DC~60Hz | 106dB, gain≥100 |
| Static Gain Error | 0.05% typ; 0.1% max |
| Noise (equivalent to input) | 1.1µV Vrms, gain=5000 |
| Zero Drift | ±3 με/24hour |
| Temperature Drift | 5 μv/℃ |
| Signal Connection | DB9 |
| Temperature Drift | 5 μv/℃ |
| Connectors | DB37 |
| Operating Temperature | 0 to 70 ℃ |
| Dimensions | 273mm x 276mm x 50mm |
| Weight | 2 kg |
| ORDER INFORMATION | |
| CM3616 | 16-Channel Strain Gage Conditioning Module |
