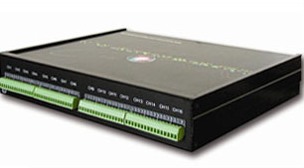

CM4116
8-Channel or 16-Channel RTD Signal Conditioning Module
| SPECIFICATIONS |  CM4116 PDF datasheet |
| Analog Input | 8 channels RTD input (CM4116-8), 16 channels RTD input (CM4116) |
| RTD Configuration | 3-wire or 4-wire |
| Alpha | 0.00385 |
| Temperature Ranges | -200 ℃ to +850 ℃ ( 100, 500, or 1000 Ohm) |
| RTD Excitation Current | 100 Ohm / 250μA, 100 Ohm / 500μA, 100 Ohm / 250μA |
| Constant current resource, suitable for long distance transmission7 | |
| Accuracy | ± 0.2 ℃ |
| Resolution | 0.1 ℃ |
| Power Supply | 12VDC ± 5% |
| Operating Temperature | 0 to 70 ℃ |
| Dimensions | 273mm x 276mm x 50mm |
| Weight | 2 kg |
| ORDER INFORMATION | |
| CM4116-8 | 8-Channel RTD Signal Conditioning Module |
| CM4116 | 16-Channel RTD Signal Conditioning Module |
